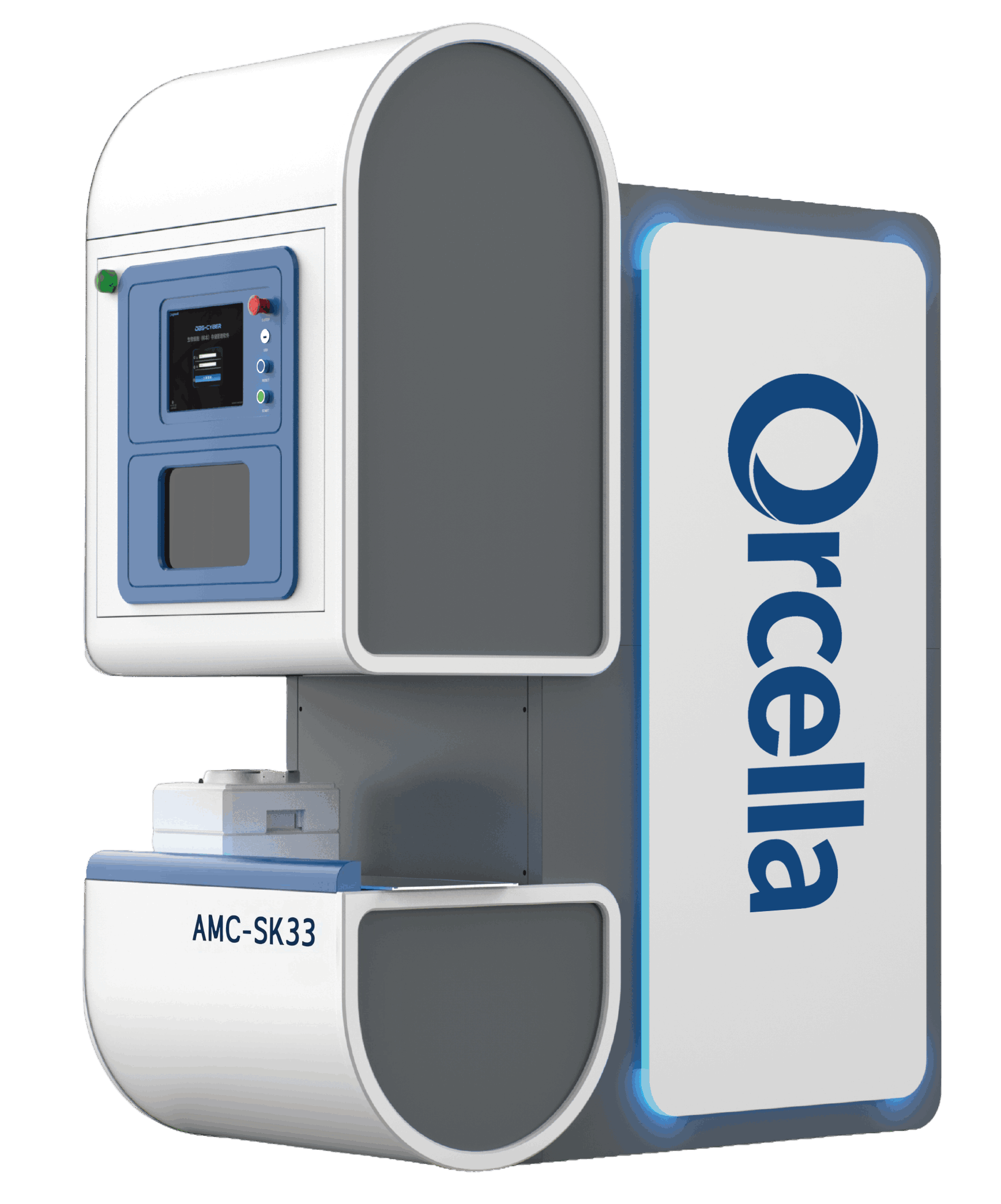

AMC-SK33 automated cryogenic biological sample storage system is a vapor-phase liquid nitrogen storage equipment with compact design.
-196℃ Automated LN Vapor-phase Storage System
AMC-SK33
-196℃ Automated LN Vapor-phase Storage System
AMC-SK33
Fully-automated with high efficiency SBS rack access and single tube retrieval, compatible with tubes of various specifications.
Dimensions (WDH): 1,250 x 1,850 x 2,350 mm
Dimensions (WDH): 4.10 x 6.07 x 7.71 ft
Weight (KG): 1400
Storage Capacity: ≥ 62,200 cryotubes (0.75mL)
Voltage/Frequency/Current: 220V / 50HZ / 16 A
Standby Power (W): ≤ 300
Operating Power (W): ≤ 900
Installation Power (W): ≤ 3,000
LN2 consumption: 20- 22kg/ day
System: OBS-Cyber
Certificate: CE
Contact us
watch video
Product Features
Rack-cassette storage structure
Support automated SBS rack access and compatible with tubes of various specifications.
Modular functional components
Easy maintenance, excellent insulation, compact, and large capacity, single tube retrieval.
Cryogenic protection
For tube-picking area, dehumidification system minimizes frost formation.
Automatic liquid nitrogen replenishment
With liquid level and temperature warning
Dehumidification and purification, no frosting
Achievement of isolation between liquid nitrogen and samples, anti contamination well structures, avoid cross contaminatio, no frosting.
Accurate single sampling
Built-in batch scanning and single tube scanning functions.
Multiple alarms, automatic replenishment
Automatic liquid nitrogen replenishment with liquid level and temperature warning
Oxygen-free liquid nitrogen storage environment
Full-process information traceability
Offer GMP and scientific research modes with user friendly interface.
Full-process cryogenic protection
The system provides an open API interface to integrate data with LIS/HIS/CIS systems.
Fully automated, intelligent, and unmanned operation
Support intelligent inventory management, optimizing storage space utilization.
