-80℃ automatic ultra-low temperature (ULT) storage equipment
Orcella duo™ 1100S
-80℃ automatic ultra-low temperature (ULT) storage equipment
Orcella duo™ 1100S

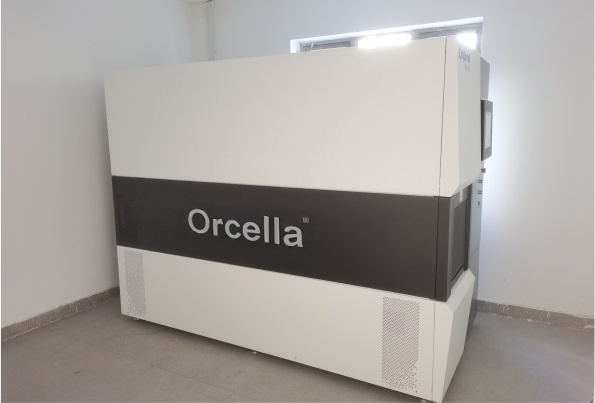

The Orcella duo™ 1100S is a next-generation, fully automated ULT storage system featuring Orcella's innovative dualmode cooling technology. This advanced system integrates compressor-based and liquid nitrogen cooling, providing superior sample protection and effectively suppressing ice buildup.
Compact and plug-and-play, it combines cutting-edge automation, robust sample security, intelligent data management, and modular connectivity—making it an ideal solution for scalable, reliable and high performance ULT storage.
Dimensions (WDH): ≤ 1080 (W)× 1550 (D)× 1980 (H) mm
/3.54(W) x 5.09(D) x 6.49(H) ft
Weight ≤ 1000kg
Storage Capacity: Cryotubes ≥111,780(0.75mL)
≥82,800(1mL)
≥37,800(2mL)
Voltage/Frequency/Current: 220V / 50HZ / 10 A
Standby Power: ≤ 350W
Operating Power: ≤ 750W
Installation Power: ≤ 3500W
Contact us
Product Feature
Fully automated, intelligent, and unmanned operation
Micro-positive pressure dehumidification, separate working chamber and storage area, avoid penetration of moisture and air impurities, no frost.
Features unique dual-mode cooling technology, with temperatures down to -86°C
Equipped with the double model of vacuum negative pressure single precise tube-picking and whole-box access, compatible with samples of various specifications.
Compact design, large storage capacity, high efficiency, and low power consumption
High storage density, small device size.
Electric refrigeration + LN auxiliary refrigeration
Electric refrigeration with LN auxiliary refrigeration module to ensure sample storage safety.
With variable frequency technology
All stages of deposit & withdrawal processes are under ULT protection to avoid repeated freezing & thawing brought about by temperature fluctuation.
Full data traceability
GMP mode, for tamper-proof of data; scientific research mode, allow adjustment on demand; realize information audit tracking; traceability of whole-process record.

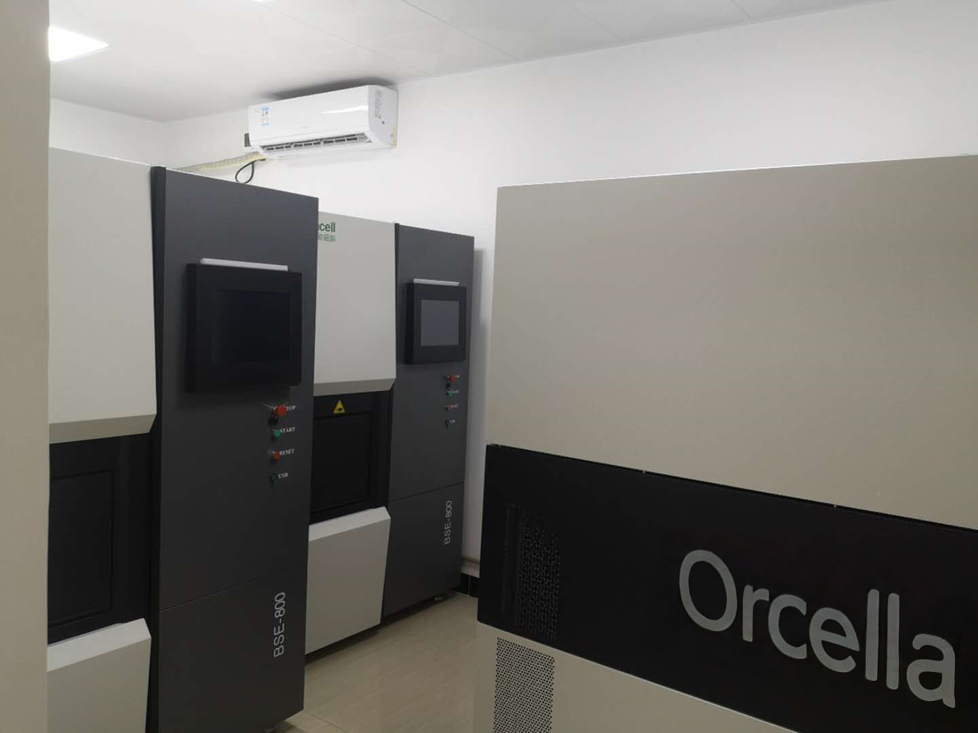

Related cases
Guangxi Zhuang Autonomous Region Tumor Prevention and Treatment Institute
广西医科大学附属肿瘤医院自动化超低温生物样本存储库，用于存储来源于医院病患者的病理样本，服务于医院各科室及关联单位。
Vegetable Research Center of Beijing Academy of Agriculture and Forestry Sciences
北京市农林科学院蔬菜研究中心自动化生物样本存储库区，存储珍惜的植物种子和相关生物样本等。
